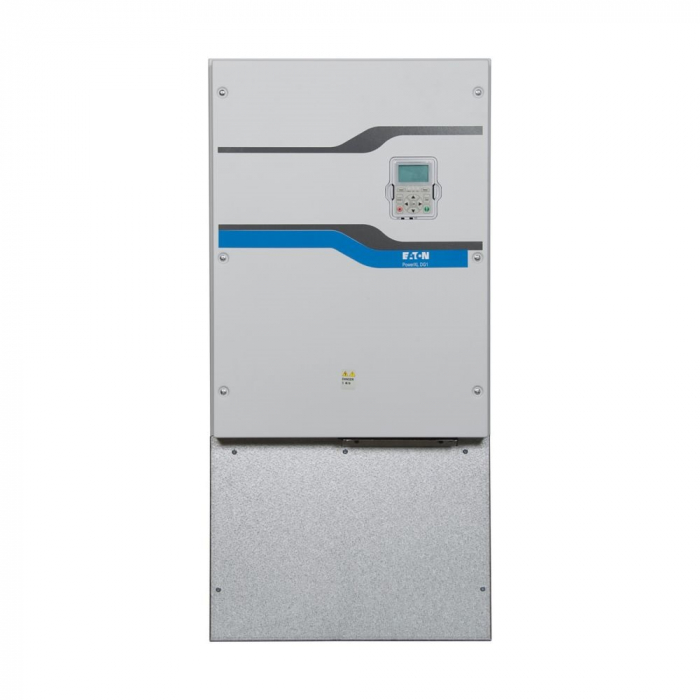

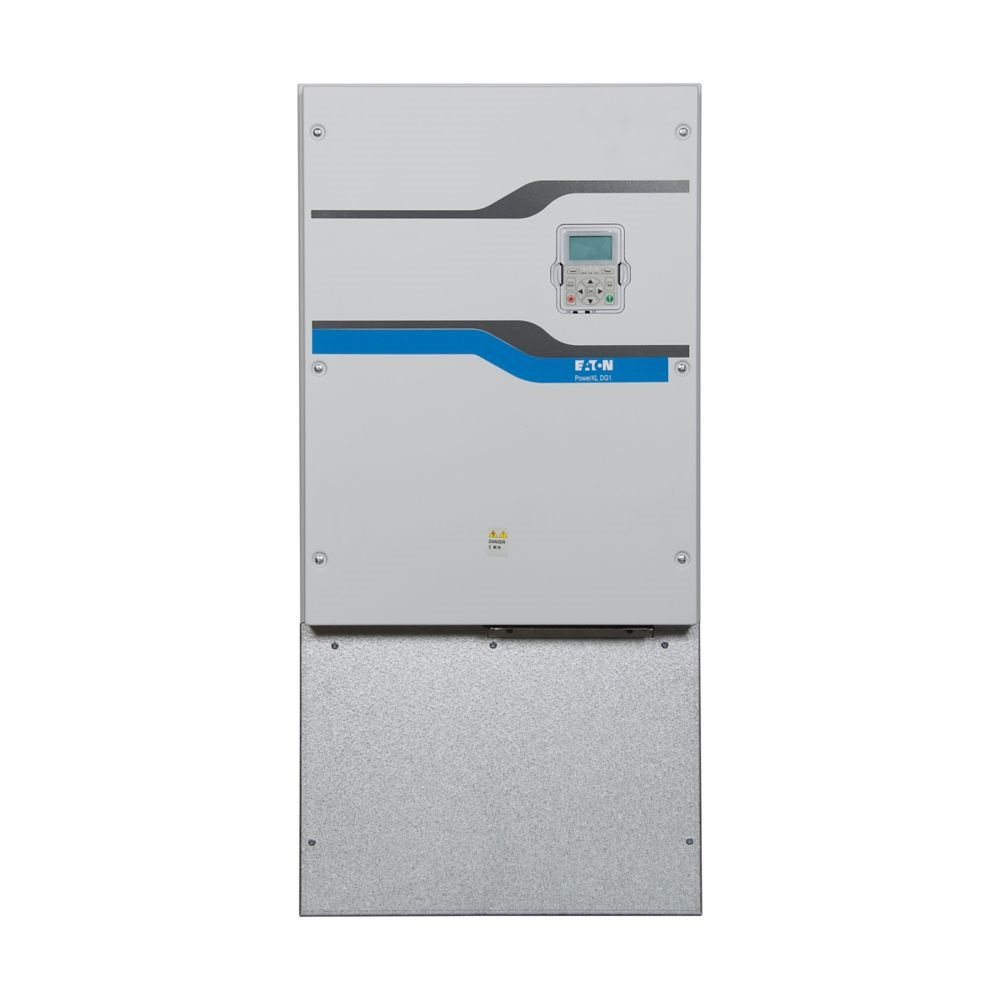

DG1-35144FN-C54C, Convertizor de frecventa, 500 V AC, 3-phase, 144 A, 90 kW, IP54/NEMA12, DC link choke
![DG1-35144FN-C54C, Convertizor de frecventa, 500 V AC, 3-phase, 144 A, 90 kW, IP54/NEMA12, DC link choke [1]](https://gomagcdn.ro/domains2/romtrade-automation.ro/files/product/original/convertizor-de-frecventa-500-v-ac-3-phase-144-a-90-kw-852755.jpg "DG1-35144FN-C54C, Convertizor de frecventa, 500 V AC, 3-phase, 144 A, 90 kW, IP54/NEMA12, DC link choke [1]")
Application notes
- Electromagnetic compatibility (EMC)
- Digital I/Os
- PID controller
- Smoke Mode and fire mode
- Torque control
- Analog I/Os
- Real time clock and use of the timers
- Starting, stopping and operation
- DG1 in pump and fan applications
- Connecting drives to generator supplies
- Motor data and V/f curves
- Operating at low temperatures
- Load balancing in multi motor applications
Data de livrare: Miercuri, 27.08.2025
Cod Produs:
DG1-35144FN-C54C
Ai nevoie de ajutor?
0765398374
- Descriere
- Video (1)
- Review-uri (0)
Product specifications
- Horsepower: 150 hp
- Phase: Three-phase in, three-phase out
- Frequency rating: 50-60 Hz
- Frame size: 6
- Keypad: Included
- Input voltage: 575 V, 525-600 V(-15%, +10%)
- Display: LCD graphical
- Torque rating: CT
- Communication: EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
- Enclosure: IP54/type 12
- NEMA rating: NEMA 1
- Protection: Internal EMC filter, DC choke
- Output current - max 144 A
- Software: Active energy control, quick start wizard
- Number of slots: 2 expansion slots
- Material: Coated board
- Power consumption: 110 kW
- Electromagnetic compatibility filter: EMC Filter
- Internal DC choke: Yes
- Conformal coated boards: Yes
- User interface: Graphical Keypad
- High overload (CT) amps: 144 A
- High overload (CT) kW: 110 kW
- High overload (CT) hp: 150 hp
- Low overload (VT) amps: 208 A
- Low overload (VT) kW: 150 kW
- Low overload (VT) hp: 200 hp
- Input voltage range: 525 - 600 V
- Input frequency range: 50 - 60 Hz
- Output frequency range: 0 - 400 Hz
- Max overload: 110% for 1 minute
- Recommended fuse size: 250
- Communications onboard: EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
- Motor control modes: Frequency, Speed, Open-loop speed, Open-loop torque
- Motor type: Inductio, PM (IPM & SPM)
